we provide Japan Quality & Low Price tools

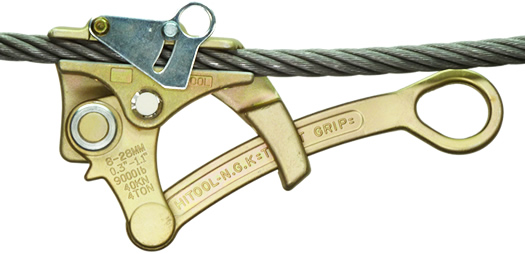

40KN（with 3 grooved jaw）

• ・Capacity
• ・Min Cable
• ・Max. Cable
• ・Jaw Length
• ・Weight
• ・Eye Size

• 40 KN(4TON)
• 8 mm
• 28 mm
• 140 mm
• 3.5 kg
• 43 mm x 51 mm

For Messenger Wire, Wire Rope, Trolley Cable, Copper Cable

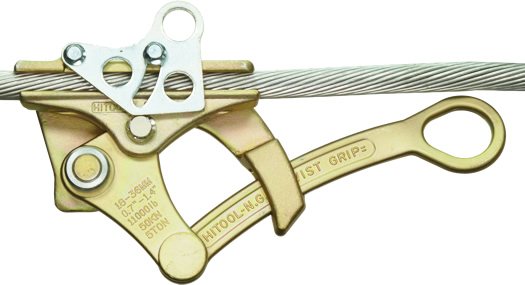

AL-50KN

• ・Capacity
• ・Min Cable
• ・Max. Cable
• ・Jaw Length
• ・Weight
• ・Eye Size

• 50 KN(5TON)
• 18 mm
• 36 mm
• 180 mm
• 4.7 kg
• 43 mm x 51 mm

For Bare ACSR, AL-Cable and Bare COPPER-Cable only

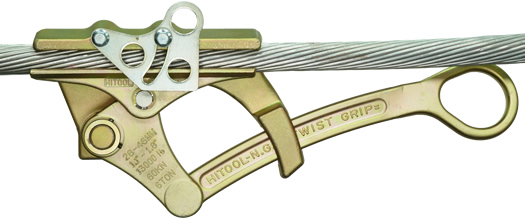

AL-60KN

• ・Capacity
• ・Min Cable
• ・Max. Cable
• ・Jaw Length
• ・Weight
• ・Eye Size

• 60 KN(6TON)
• 28 mm
• 46 mm
• 220 mm
• 7.0 kg
• 60 mm x 51mm

For Bare ACSR, AL-Cable and Bare COPPER-Cable only

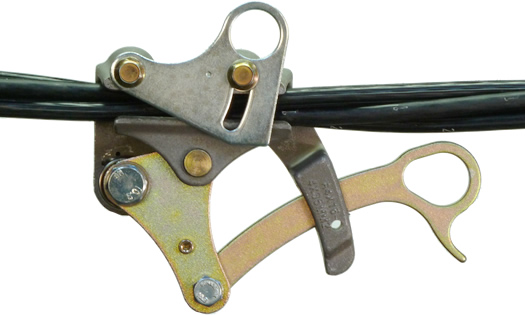

ABC-S

• ・Capacity
• ・Min Cable
• ・Max. Cable
• ・Jaw Length
• ・Weight
• ・Eye Size

• 3.5 KN(350Kgf)
• 4×16mm²
  2×16mm²
• 4×35mm²
  2×50mm²
• 80 mm
• 0.6 kg
• 24 mm x 30 mm

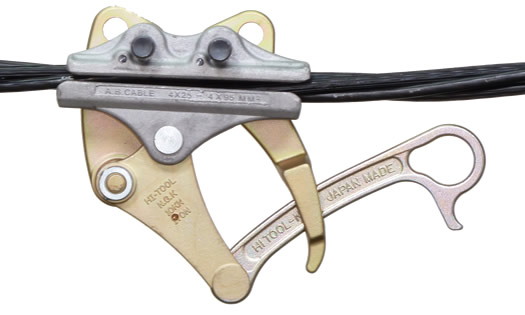

ABC-M

• ・Capacity
• ・Min Cable
• ・Max. Cable
• ・Jaw Length
• ・Weight
• ・Eye Size

• 10 KN(1TON)
• 4×25mm²
• 4×95mm²
• 160 mm
• 2.4 kg
• 32 mm x 42 mm

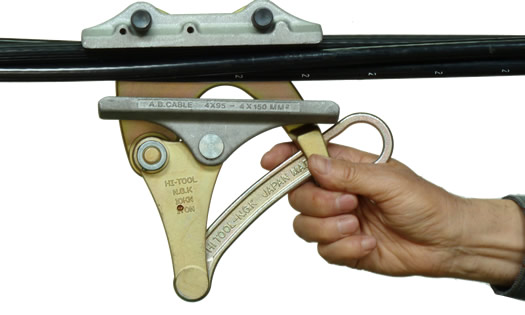

ABC-L

• ・Capacity
• ・Min Cable
• ・Max. Cable
• ・Jaw Length
• ・Weight
• ・Eye Size

• 18 KN(1.8TON)
• 4×95mm²
• 4×150mm²
• 180 mm
• 2.6 kg
• 32 mm x 42 mm
