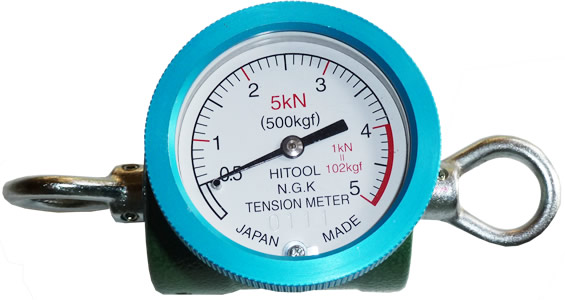

Compact, lightweight, rugged construction.
Designed for line work.
Accepts harsh field conditions(cold&heat)
Graduated in kilonewtons (kN).
Accuracy +/- 3% Full Scales.
Both pulling eyes rotate 360 degrees.
Optional maximum reading indicator pointer kit available for easy installation.
Optional easily installed screw-on face with twin steel protective bars also available.
Each tool is serial numbered and supplied in a heavy duty fabric case with calibration certificate.
Available in sizes 5kN up to 100kN.

Part # TM5/30 POINTER Suit TM-5 to TM-30 Dynamometer
Part # TM50/100 POINTER Suit TM-50 to TM-100 Dynamometer
Part # TM5/30 BARS
Suit TM-5 to TM-30 Dynamometer
Part # TM50/100 BARS Suit TM50　to TM100 Dynamometer

In choosing the right dynamometer for your application, always select one that exceeds your highest range. If you expect to measure 20kN, select TM30 at the 30kN capacity. This allows for unexpected shock loading beyond your usual high range which can occur due to gusty winds or other factors.

Model	Capacity	Graduation	A	B-Body	C	D	Weight
TM-5	5 kN	0.1 kN	160 mm	75 mm	90 mm	20 mm	0.9 kg
TM-10	10 kN	0.2 kN	190 mm	75 mm	90 mm	25 mm	1.0 kg
TM-20	20kN	0.5 kN	190 mm	75 mm	90 mm	25 mm	1.1 kg
TM-30	30kN	0.5 kN	240 mm	75 mm	95 mm	35 mm	1.9 kg
TM-50	50kN	1.0 kN	250 mm	90 mm	120 mm	35 mm	2.6 kg
TM-100	100kN	2.0 kN	350 mm	110 mm	140 mm	50 mm	6.0 kg
